Swivelling the seats3 options
Our campers are designed to give you maximum flexibility. Choose your seat and follow the steps to swivel it safely.
Make sure all seats are road-safe before driving. Seats must be locked in the forward-facing position, with all seat belts accessible.

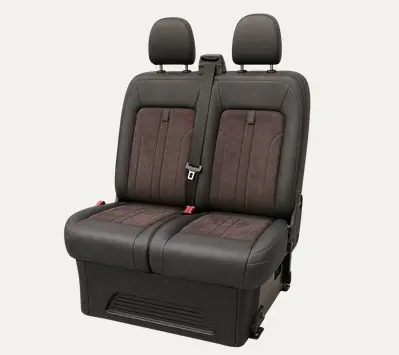

Double passenger
We fit the best double passenger swivels on the market: Stide on all T7s and Mobiframe on T6s.
- Loosen. Loosen all five bolts: four at the back and one inside the chair. Lift both levers, one at the front and one at the back.
- Slide back. Kneeling behind it, pull the seat towards the rear of the vehicle.
- Swivel. Rotate the seat fully inwards, then slide it back towards the front cab. You may need to adjust the seat left, right, forwards and backwards as you turn, to clear the pillars.
Single passenger
- Loosen. Pull up the bolt on the locker box underneath the seat. Lift both levers, one at the front and one at the back.
- Swivel. Turn the seat inwards on the spot through 180 degrees.
Driver
- Lower. Lower the handbrake and leave the van in first gear before swivelling.
- Loosen. Pull the lever at the front of the seat.
- Swivel. Turn the seat inwards on the spot through 180 degrees.

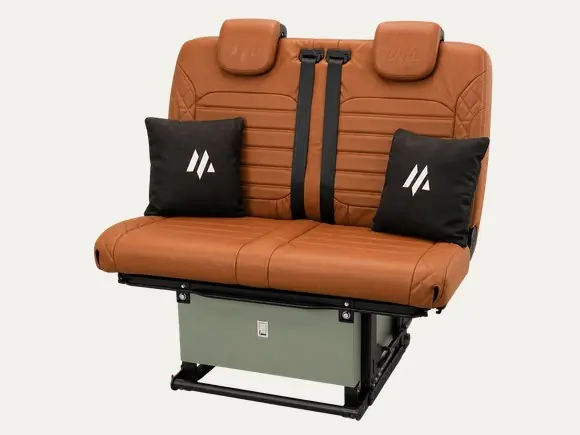

Mobiframe rail bedInfo
The Mobiframe rail bed gives you flexible seating and sleeping while making good use of the space in your camper. It slides along the rails to suit your setup and converts easily from a travelling seat into a bed.

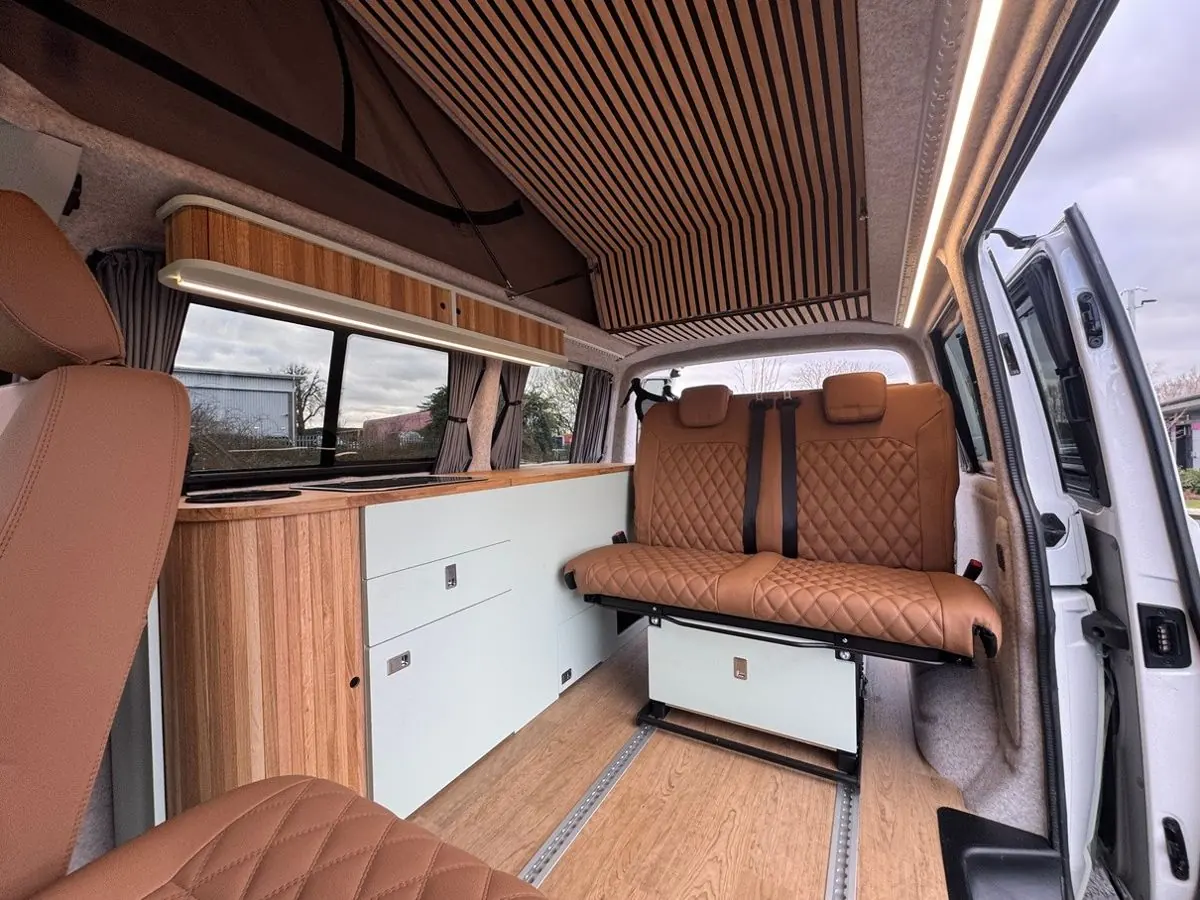

Moving the bed3 steps
- Sitting on the seat, pull the large handle near the floor fully upward to release the bed.
- Slide the bed forwards or backwards to where you want it.
- Release the handle and push it fully down to lock.
If the handle will not go fully down, or you hear a metal clunk: gently slide or wiggle the bed until it engages, then push the handle down.

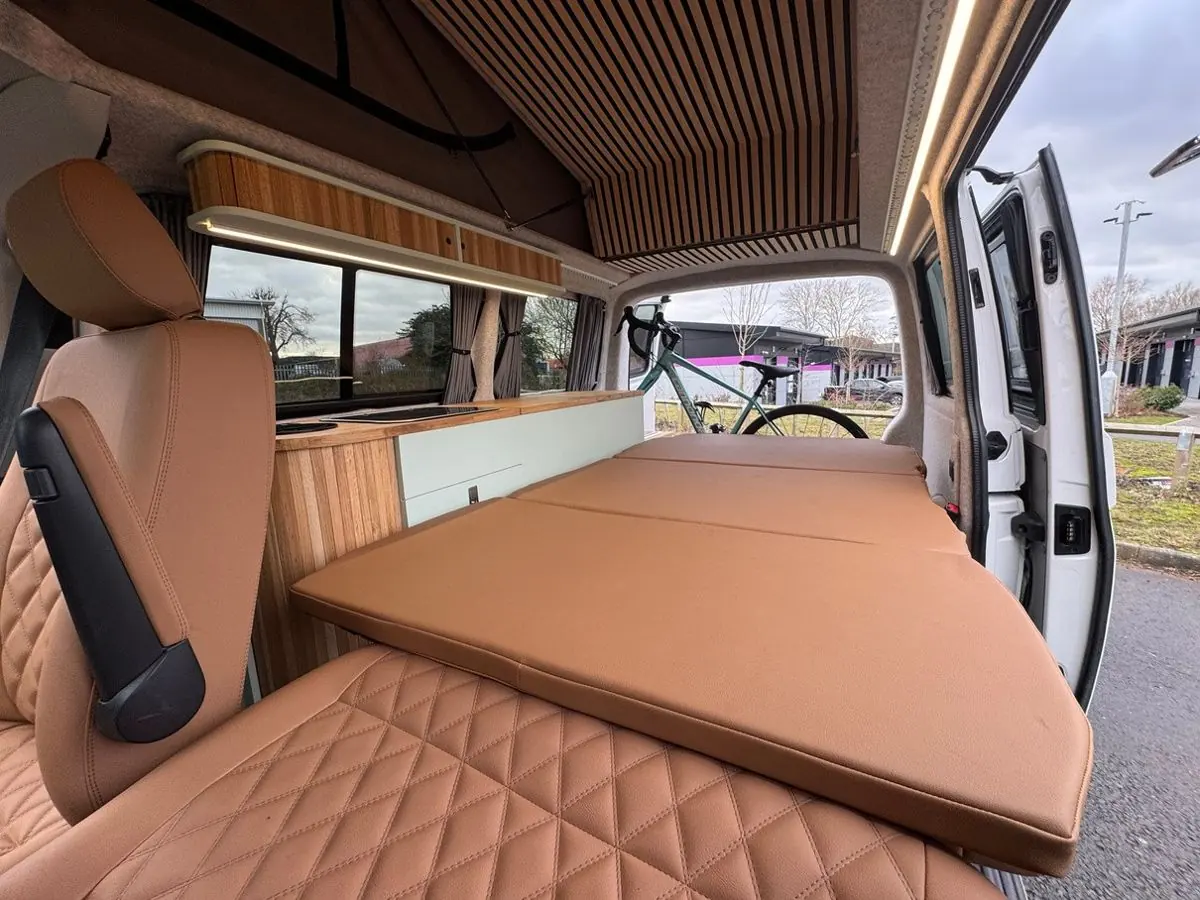

Unfolding the seat into a bed5 steps
- Make sure there is enough space in front of and behind the seat to unfold it fully. Slide it first if needed.
- Pull the handle at the front, below the cushion, up and towards you to slide the lower cushion forward, then flip it over. Kneel on this for the next step.
- With your left hand, pull the red handle under the left-hand seat towards you. With your right hand, grab the back of the seat and pull it towards you to fold the back cushions down.
- Unfold the topper cushion over the lower seats.
- Pull the fabric handle at the top of the remaining frame section to fold the backrest down completely. You can stop part-way for a reclined position.
Mobiframe beds are fully M1 and N1 crash tested, with three-point seat belts and ISOFIX points.
